In modern internet architectures, high availability is a crucial consideration in system design. This article will detail how to use Keepalived and HAProxy to build a highly available load balancing cluster, ensuring service continuity and reliability.

The practical configuration section was not validated, and the article planning relies on AI completion

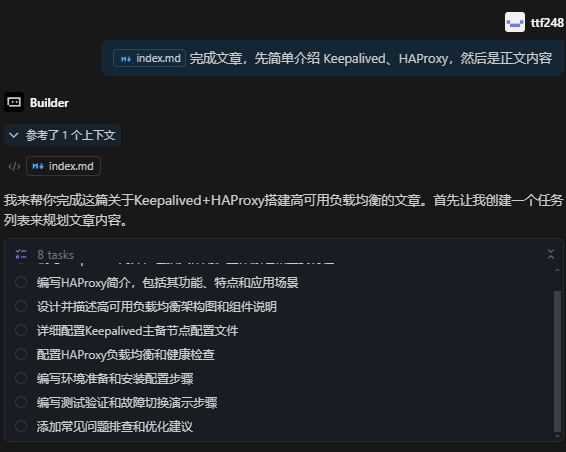

(Since I cannot see the image, I’m simply repeating the markdown as it was provided.)

Technical Overview

Keepalived Introduction

Keepalived is a high availability solution based on the VRRP (Virtual Router Redundancy Protocol) protocol, primarily used to implement server failover and load balancing.

Key Features:

• VRRP Protocol Support: Enables virtual IP address master/slave switching
• Health Checks: Monitors service status and automatically performs failover
• Simple Configuration: Complex high availability architectures can be achieved through configuration files alone
• Lightweight: Low resource consumption and excellent performance

Working Principle: Keepalived utilizes the VRRP protocol to share a virtual IP address across multiple servers. In normal operation, the master server holds the virtual IP and provides services; when the master server fails, the backup server automatically takes over the virtual IP, ensuring service continuity.

HAProxy Overview

HAProxy is a high-performance load balancer and reverse proxy server, widely used in high concurrency scenarios.

Key Features:

• Load Balancing: Supports various load balancing algorithms
• Health Checks: Monitors backend server status in real-time
• SSL Termination: Supports HTTPS traffic handling
• Statistical Monitoring: Provides detailed running state statistics

Application Scenarios:

• Web service load balancing
• Database connection pooling
• Microservice gateways
• API interface proxy

Architecture Design

Overall Architecture

                    ┌─────────────────┐
                    │   Client        │
                    └─────────┬───────┘
                              │
                    ┌─────────▼───────┐
                    │  Virtual IP     │
                    │  (VIP)          │
                    └─────────┬───────┘
                              │
              ┌───────────────┼───────────────┐
              │               │               │
    ┌─────────▼───────┐              ┌─────────▼───────┐
    │   HAProxy-1     │              │   HAProxy-2     │
    │  (Master)       │◄────────────►│   (Backup)      │
    │  + Keepalived   │   VRRP       │  + Keepalived   │
    └─────────┬───────┘              └─────────┬───────┘
              │                                │
              └──────────┬─────────────────────┘
                         │
        ┌────────────────┼────────────────┐
        │                │                │
┌───────▼───────┐ ┌──────▼──────┐ ┌───────▼───────┐
│  Web Server 1 │ │ Web Server 2│ │  Web Server 3 │
│   Backend     │ │   Backend   │ │   Backend     │
└───────────────┘ └─────────────┘ └───────────────┘

Component Description

• Virtual IP (VIP): A unified entry point for clients to access.
• HAProxy Master-Backup Nodes: Provides load balancing services and achieves high availability through Keepalived.
• Backend Servers: The actual web servers providing the service.

Environment Setup

Server Planning

Server Planning

Server Planning

Server Planning

Server Planning

Server Planning

Software Installation

Install the necessary software on the HAProxy master and backup nodes:

# CentOS/RHEL
yum install -y haproxy keepalived

# Ubuntu/Debian
apt-get update
apt-get install -y haproxy keepalived

# Enable services to start automatically on boot
systemctl enable haproxy keepalived

Keepalived Configuration

Master Node Configuration (lb-master)

Create the configuration file /etc/keepalived/keepalived.conf:

! Configuration File for keepalived

global_defs {
    router_id LB_MASTER
    script_user root
    enable_script_security
}

# Script to check HAProxy service status
vrrp_script chk_haproxy {
    script "/etc/keepalived/check_haproxy.sh"
    interval 2
    weight -2
    fall 3
    rise 2
}

vrrp_instance VI_1 {
    state MASTER
    interface eth0
    virtual_router_id 51
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass mypassword123
    }

    virtual_ipaddress {
        192.168.1.100/24
    }

    track_script {
        chk_haproxy
    }

    notify_master "/etc/keepalived/notify.sh master"
    notify_backup "/etc/keepalived/notify.sh backup"
    notify_fault "/etc/keepalived/notify.sh fault"
}

LB Backup Configuration

Create the configuration file /etc/keepalived/keepalived.conf:

! Configuration File for keepalived

global_defs {
    router_id LB_BACKUP
    script_user root
    enable_script_security
}

vrrp_script chk_haproxy {
    script "/etc/keepalived/check_haproxy.sh"
    interval 2
    weight -2
    fall 3
    rise 2
}

vrrp_instance VI_1 {
    state BACKUP
    interface eth0
    virtual_router_id 51
    priority 90
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass mypassword123
    }

    virtual_ipaddress {
        192.168.1.100/24
    }

    track_script {
        chk_haproxy
    }

    notify_master "/etc/keepalived/notify.sh master"
    notify_backup "/etc/keepalived/notify.sh backup"
    notify_fault "/etc/keepalived/notify.sh fault"
}

Health Check Script

Create the HAProxy health check script /etc/keepalived/check_haproxy.sh:

#!/bin/bash

# Check if the haproxy process is running
if [ $(ps -C haproxy --no-header | wc -l) -eq 0 ]; then
    # Attempt to start HAProxy
    systemctl start haproxy
    sleep 2

    # Check again, if it's still not running exit
    if [ $(ps -C haproxy --no-header | wc -l) -eq 0 ]; then
        exit 1
    fi
fi

# Check if HAProxy port is listening
if ! netstat -tuln | grep -q ":80 "; then
    exit 1
fi

exit 0

State Notification Script

Create the state notification script /etc/keepalived/notify.sh:

#!/bin/bash

TYPE=$1
NAME=$2
STATE=$3

case $STATE in
    "MASTER")
        echo "$(date): Became MASTER" >> /var/log/keepalived-state.log
        ;;
    "BACKUP")
        echo "$(date): Became BACKUP" >> /var/log/keepalived-state.log
        ;;
    "FAULT")
        echo "$(date): Fault detected" >> /var/log/keepalived-state.log
        ;;
    *)
        echo "$(date): Unknown state: $STATE" >> /var/log/keepalived-state.log
        ;;
esac

Set script execution permissions:

chmod +x /etc/keepalived/check_haproxy.sh
chmod +x /etc/keepalived/notify.sh

HAProxy Configuration

Main Configuration

Create the same HAProxy configuration file /etc/haproxy/haproxy.cfg on the master node:

global
    log 127.0.0.1:514 local0
    chroot /var/lib/haproxy
    stats socket /run/haproxy/admin.sock mode 660 level admin
    stats timeout 30s
    user haproxy
    group haproxy
    daemon

defaults
    mode http
    log global
    option httplog
    option dontlognull
    option log-health-checks
    option forwardfor except 127.0.0.0/8
    option redispatch
    retries 3
    timeout http-request 10s
    timeout queue 1m
    timeout connect 10s
    timeout client 1m
    timeout server 1m
    timeout http-keep-alive 10s
    timeout check 10s
    maxconn 3000

# Statistics page configuration
listen stats
    bind *:8080
    stats enable
    stats uri /stats
    stats realm HAProxy\ Statistics
    stats auth admin:password123
    stats refresh 30s

# Frontend configuration
frontend web_frontend
    bind *:80
    default_backend web_servers

# Backend server configuration
backend web_servers
    balance roundrobin
    option httpchk GET /health

    server web1 192.168.1.20:80 check inter 2000 rise 2 fall 3
    server web2 192.168.1.21:80 check inter 2000 rise 2 fall 3
    server web3 192.168.1.22:80 check inter 2000 rise 2 fall 3

Configuration Instructions

Global Configuration:

• log: Log configuration
• chroot: Security sandbox
• stats socket: Management interface
• daemon: Background execution

Default Configuration:

• mode http: HTTP mode
• balance roundrobin: Round robin load balancing
• option httpchk: HTTP health check
• timeout: Various timeout settings

Backend Servers:

• check: Enable health checks
• inter 2000: Check interval of 2 seconds
• rise 2: Mark as available after 2 consecutive successful checks
• fall 3: Mark as unavailable after 3 consecutive failed checks

Service Startup and Testing

Start Service

Start the service on the master and backup nodes:

# Start HAProxy
systemctl start haproxy
systemctl status haproxy

# Start Keepalived
systemctl start keepalived
systemctl status keepalived

Verify VIP Binding

Check if the virtual IP is correctly bound:

# View IP address on the master node
ip addr show

# You should see output similar to:
# eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
#     inet 192.168.1.10/24 brd 192.168.1.255 scope global eth0
#     inet 192.168.1.100/24 scope global secondary eth0:0

Functional Testing

1. Load Balancing Testing

# Repeatedly access the VIP and observe request distribution
for i in {1..10}; do
    curl -s http://192.168.1.100/ | grep "Server"
done

2. Failover Testing

# Stop the HAProxy service on the primary node
systemctl stop haproxy

# Observe if the VIP switches to the backup node
ip addr show

# Test if the service is working normally
curl http://192.168.1.100/

3. Backend Server Failure Testing

# Stop one of the web servers
# On the web1 server:
systemctl stop nginx

# Observe the HAProxy statistics page
curl http://192.168.1.100:8080/stats

Monitoring and Maintenance

Log Monitoring

HAProxy Logs

# View HAProxy logs
tail -f /var/log/haproxy.log

# View access statistics
grep "HTTP/1.1" /var/log/haproxy.log | tail -20

Keepalived Logs

# View Keepalived logs
tail -f /var/log/messages | grep keepalived

# View state change logs
tail -f /var/log/keepalived-state.log

Performance Monitoring

Statistical Page Monitoring

Access the HAProxy statistics page: http://192.168.1.100:8080/stats Key Metrics:

• Session Rate: Session rate
• Session Total: Total number of sessions
• Bytes In/Out: Traffic statistics
• Response Time: Response time
• Server Status: Server status

Command Line Monitoring

# Check HAProxy process status
ps aux | grep haproxy

# Check port listening status
netstat -tuln | grep -E "(80|8080)"

# Check connection count
ss -ant | grep :80 | wc -l

Troubleshooting FAQs

1. VIP cannot be switched

Problem Description: After the master node fails, the VIP does not switch to the backup node. Troubleshooting Steps:

# Check Keepalived configuration
keepalived -t -f /etc/keepalived/keepalived.conf

# View VRRP communication
tcpdump -i eth0 vrrp

# Check firewall settings
iptables -L | grep vrrp

Solution:

• Ensure that VRRP protocol communication is normal.
• Check network interface configuration.
• Verify authentication password consistency.

2. Health Check Failed

Problem Description: Backend server marked as unavailable Troubleshooting Steps:

# Manually execute health check
curl -I http://192.168.1.20/health

# View HAProxy logs
grep "Health check" /var/log/haproxy.log

Solution:

• Ensure the health check URL is accessible
• Adjust the check interval and thresholds
• Check the backend server status

3. Load Unbalance

Problem Description: Requests are not evenly distributed to the backend servers. Troubleshooting Steps:

# View statistics page
curl -s http://192.168.1.100:8080/stats

# Analyze access logs
awk '{print $6}' /var/log/haproxy.log | sort | uniq -c

Solution:

• Check the load balancing algorithm configuration
• Verify server weights settings
• Consider session persistence requirements

Optimization Suggestions

1. Performance Optimization

# Adjust system parameters
echo 'net.core.somaxconn = 65535' >> /etc/sysctl.conf
echo 'net.ipv4.tcp_max_syn_backlog = 65535' >> /etc/sysctl.conf
sysctl -p

# Optimize HAProxy configuration
# Increase maxconn value
# Adjust timeout parameters
# Enable compression functionality

2. Security Hardening

# Restrict access to the statistics page
# Add ACL rules in haproxy.cfg
acl allowed_ips src 192.168.1.0/24
http-request deny if !allowed_ips

# Enable SSL/TLS
bind *:443 ssl crt /etc/ssl/certs/server.pem
redirect scheme https if !{ ssl_fc }

3. Monitoring and Alerts

# Integrate with a monitoring system
# Configure Prometheus for monitoring
# Set up Grafana dashboards
# Define alert rules

Summary

By combining Keepalived and HAProxy, we successfully built a highly available load balancing cluster. This solution offers the following advantages:

1. High Availability: Achieved through VRRP protocol for automatic failover.
2. Load Balancing: Intelligently distributes requests to improve system performance.
3. Health Checks: Real-time monitoring of service status, automatically removing faulty nodes.
4. Ease of Maintenance: Simple configuration and convenient management.
5. Cost Effectiveness: Utilizing open-source software to reduce operational costs.

When deploying in a production environment, it’s also necessary to consider comprehensive aspects such as network security, monitoring and alerts, and backup/restore procedures to ensure stable and reliable operation of the system.
